ETL and dashboarding for Google & Meta Ads using Google BigQuery(SQL) & Looker Studio

Data streamlining, integration & automation project

Business Background

As the Account/Data Manager for a digital advertising project with a senior living marketplace in the U.S., I was tasked with building a dashboard to monitor campaign performance — both for internal use and for client reporting.

The client’s data team provided a Looker dashboard that tracked key post-lead metrics. Meanwhile, my team was responsible for guiding the client in setting up a Google Ads & Meta Ads dashboard focused on pre-lead performance indicators such as spend, CTR, CPC, and CPL. These metrics were to be broken down by device type, ad type, gender, and age group. The objective was not just to track pre-lead trends, but also to establish a clear connection between ad spend, individual keywords & clicks and lead generation & quality.

Challenge

One of the major hurdles was integrating Google & Meta Ads data with the client’s CRM data (lead records). The challenge stemmed from difficulties in locating the correct tables and metrics within the client’s existing data infrastructure, limiting our ability to create a seamless connection between marketing efforts and lead outcomes. Even when identified, the whole process was manual.

Solution

Step 1 - Data Ingestion

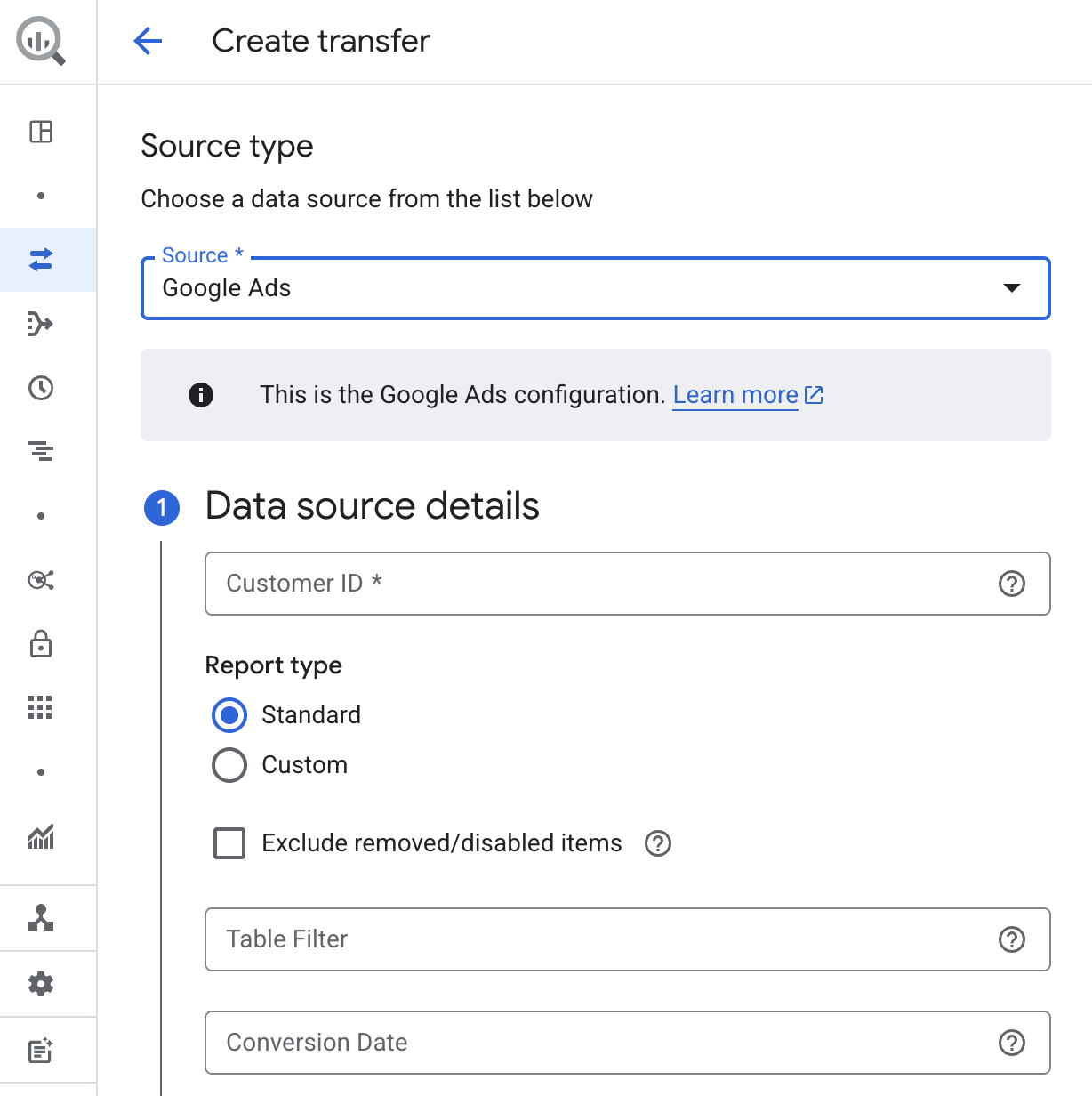

Bringing Google Ads data into the data warehouse - BigQuery.

Bringing Data into BigQuery-Datawarehouse

Meta Ads data

Setting up data transfer was a little trickier. Here are the step-by-step instructions to connect FB ads to BigQuery

1️⃣ Create a Facebook App (Meta for Developers)

Go to Meta for Developers
 → My Apps → Create App.
Choose - Business type (needed for Ads API access).
Provide an App Name, Business Account, and contact email.

2️⃣ Add the Marketing API product In your App dashboard → Add Product → select Marketing API. This enables ad account and campaign data access.

3️⃣ Get the required permissions For BigQuery Data Transfer, check the below permissions: ads_read (read campaign & ad performance data). ads_management (needed even for some read operations & BQ integration). business_management

In App → App Review → Permissions and Features → Request these scopes.

4️⃣ Create a System User & Access Token (via Business Manager)

Go to Business Settings → System Users → Add new system user (Admin role). Assign ad accounts to this user.

Generate a long-lived access token with ads_read + ads_management.

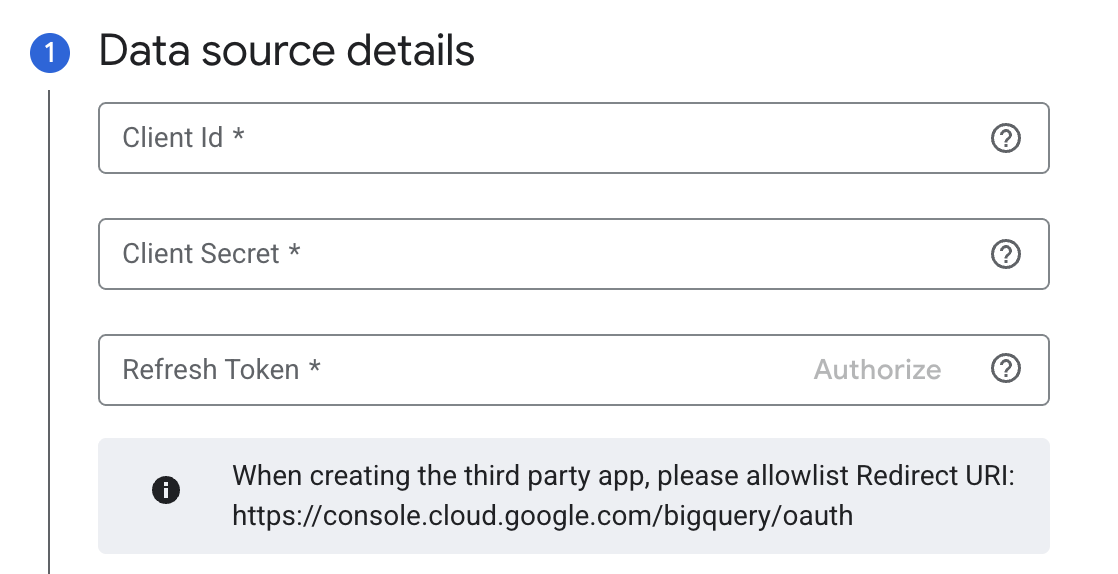

5️⃣ Set up BigQuery Data Transfer Service

Keep token, App ID(client ID), and App secret handy In Google Cloud → BigQuery → Data Transfers → Create Transfer.

Choose Facebook Ads as the source. Authorize with the same (refresh) token that has the required permissions. Add client ID & Client Secret from earlier.

Bringing Data into BigQuery-Datawarehouse

Select ad account(s) and schedule daily/hourly imports.

Step 2 - Date Cleaning & Transformation

Next I created the metadata required to combine metrics from different tables for an integrated view.

Step 2.1 - Creating Metadata for campaigns

SELECT
  DISTINCT(campaign_id),
  campaign_name,
  campaign_advertising_channel_type,
  campaign_advertising_channel_sub_type,
  campaign_start_date,
  campaign_serving_status,
FROM
  `aroscop-456222.********_Adwords.ads_Campaign_9925610920`
WHERE
  campaign_start_date >'2025-02-25'

Step 2.2 - Getting metrics & dimensions for Campaigns

SELECT
  segments_date,
  Campaign.campaign_id,
  Meta.campaign_name,
  Meta.campaign_advertising_channel_type,
  Campaign.metrics_impressions,
  Campaign.metrics_clicks,
  Campaign.metrics_conversions,
  Campaign.segments_device,
  round(Campaign.metrics_cost_micros/1000000,2) as cost
FROM
  `aroscop-456222.********_Adwords.ads_CampaignBasicStats_9925610920` AS Campaign
LEFT JOIN
  `Cleaned_Data_Metadata_********.Campaign_Meta` AS Meta
USING
  (campaign_id)
ORDER BY
segments_date

Step 2.3 - Clicks Ids & related metrics

Select
  click_view_gclid,
  Clicks.campaign_id,
  ad_group_id,
  metrics_clicks,
  click_view_page_number,
  click_view_keyword,
  click_view_keyword_info_match_type,
  click_view_keyword_info_text,
  click_view_location_of_presence_city,
  click_view_location_of_presence_metro,
  click_view_location_of_presence_most_specific,
  customer_descriptive_name,
  segments_click_type,
  segments_device,
  segments_date
FROM
  `********_Adwords.ads_ClickStats_9925610920` AS Clicks
LEFT OUTER
JOIN
`Cleaned_Data_Metadata_********.Campaign_Meta`
using(campaign_id)
ORDER BY
  segments_date

Step 2.4 - Keyword level information

SELECT
  ad_group_id,
  campaign_id,
  Meta.campaign_name,
  ad_group_criterion_criterion_id,
  ad_group_criterion_keyword_match_type,
  ad_group_criterion_keyword_text,
  ad_group_criterion_negative,
  ad_group_criterion_position_estimates_estimated_add_clicks_at_first_position_cpc,
  ad_group_criterion_position_estimates_estimated_add_cost_at_first_position_cpc,
  ad_group_criterion_position_estimates_first_page_cpc_micros,
  ad_group_criterion_quality_info_post_click_quality_score
FROM
  `aroscop-456222.********_Adwords.p_ads_Keyword_9925610920` as Keywords
LEFT JOIN
  `Cleaned_Data_Metadata_********.Campaign_Meta` as Meta
  Using (campaign_id)
Where
 Meta.campaign_start_date >='2025-02-25'

Step 2.4 - Search queries (accept those that have been acted upon (added to keywords or negatives)

SELECT
  sqt.segments_date,
  sqt.campaign_id,
  cmp.campaign_name,
  sqt.ad_group_id,
  sqt.ad_group_ad_ad_id,
  sqt.metrics_impressions,
  sqt.metrics_clicks,
  sqt.metrics_conversions,
  sqt.metrics_all_conversions,
  sqt.metrics_cost_micros/1000000 AS cost,
  sqt.segments_device,
  sqt.search_term_view_status,
  sqt.search_term_view_search_term
FROM
  `********_Adwords.ads_SearchQueryStats_9925610920` AS sqt
LEFT JOIN
  `Cleaned_Data_Metadata_********.Campaign_Meta`AS cmp
USING
  (campaign_id)
WHERE
  cmp.campaign_start_date > '2025-02-25'
  AND sqt.search_term_view_status = 'NONE'

Step 4 Pipeline Orchestration

The final step for the data warehousing was to create auto refreshes and appends to the tables created earlier.

Appending campaign metadata (as new campaigns launch)

INSERT INTO
`Cleaned_Data_Metadata_********.Campaign_Meta`
SELECT
  campaign_id,
  campaign_name,
  campaign_advertising_channel_type,
  campaign_advertising_channel_sub_type,
  campaign_start_date,
  campaign_serving_status,
FROM
  `********_Adwords.p_ads_Campaign_9925610920` AS Campaign
WHERE
  NOT EXISTS (
  SELECT
    campaign_id
  FROM
    `aroscop-456222.Cleaned_Data_Metadata_********.Campaign_Meta`
  WHERE
    campaign_id = Campaign.campaign_id )
  AND Campaign.campaign_start_date >'2025-02-25'
  AND Campaign.campaign_name <> **********************  (duplicate campaign name)

Appending campaign metrics

Insert INTO
`Cleaned_Data_Metadata_********.Campaign_Metrics`
SELECT
  segments_date,
  Campaign.campaign_id,
  Meta.campaign_name,
  Meta.campaign_advertising_channel_type,
  Campaign.metrics_impressions,
  Campaign.metrics_clicks,
  Campaign.metrics_conversions,
  Campaign.segments_device,
  round(Campaign.metrics_cost_micros/1000000,2) as cost
FROM
  `aroscop-456222.********_Adwords.ads_CampaignBasicStats_9925610920` AS Campaign
LEFT JOIN
  `Cleaned_Data_Metadata_********.Campaign_Meta` AS Meta
USING
  (campaign_id)
Where Campaign.segments_date > (select max(segments_date) from `Cleaned_Data_Metadata_********.Campaign_Metrics`)
ORDER BY
segments_date

Appending Clicks_Gclid metrics

INSERT INTO
`Cleaned_Data_Metadata_********.Clicks_Gclids`
Select
  click_view_gclid,
  Clicks.campaign_id,
  ad_group_id,
  metrics_clicks,
  click_view_page_number,
  click_view_keyword,
  click_view_keyword_info_match_type,
  click_view_keyword_info_text,
  click_view_location_of_presence_city,
  click_view_location_of_presence_metro,
  click_view_location_of_presence_most_specific,
  customer_descriptive_name,
  segments_click_type,
  segments_device,
  segments_date
FROM
  `********_Adwords.ads_ClickStats_9925610920` AS Clicks
LEFT OUTER
JOIN
`Cleaned_Data_Metadata_********.Campaign_Meta`
using(campaign_id)
Where Clicks.segments_date > (select max(segments_date) from `Cleaned_Data_Metadata_********.Clicks_Gclids`)
AND
not exists
(select * from `Cleaned_Data_Metadata_********.Clicks_Gclids` as Old
WHERE
  Old.click_view_gclid = Clicks.click_view_gclid
)
ORDER BY
  Clicks.segments_date

Append Search Queries data

INSERT INTO
`Cleaned_Data_Metadata_********.Search_Queries`
SELECT
  sqt.segments_date,
  sqt.campaign_id,
  cmp.campaign_name,
  sqt.ad_group_id,
  sqt.ad_group_ad_ad_id,
  sqt.metrics_impressions,
  sqt.metrics_clicks,
  sqt.metrics_conversions,
  sqt.metrics_all_conversions,
  sqt.metrics_cost_micros/1000000 AS cost,
  sqt.segments_device,
  sqt.search_term_view_status,
  sqt.search_term_view_search_term
FROM
  `********_Adwords.ads_SearchQueryStats_9925610920` AS sqt
LEFT JOIN
  `Cleaned_Data_Metadata_********.Campaign_Meta`AS cmp
USING
  (campaign_id)
WHERE
  cmp.campaign_start_date > '2025-02-25'
  AND sqt.search_term_view_status = 'NONE'
  AND sqt.segments_date > (select max(segments_date) from `Cleaned_Data_Metadata_********.Search_Queries`)

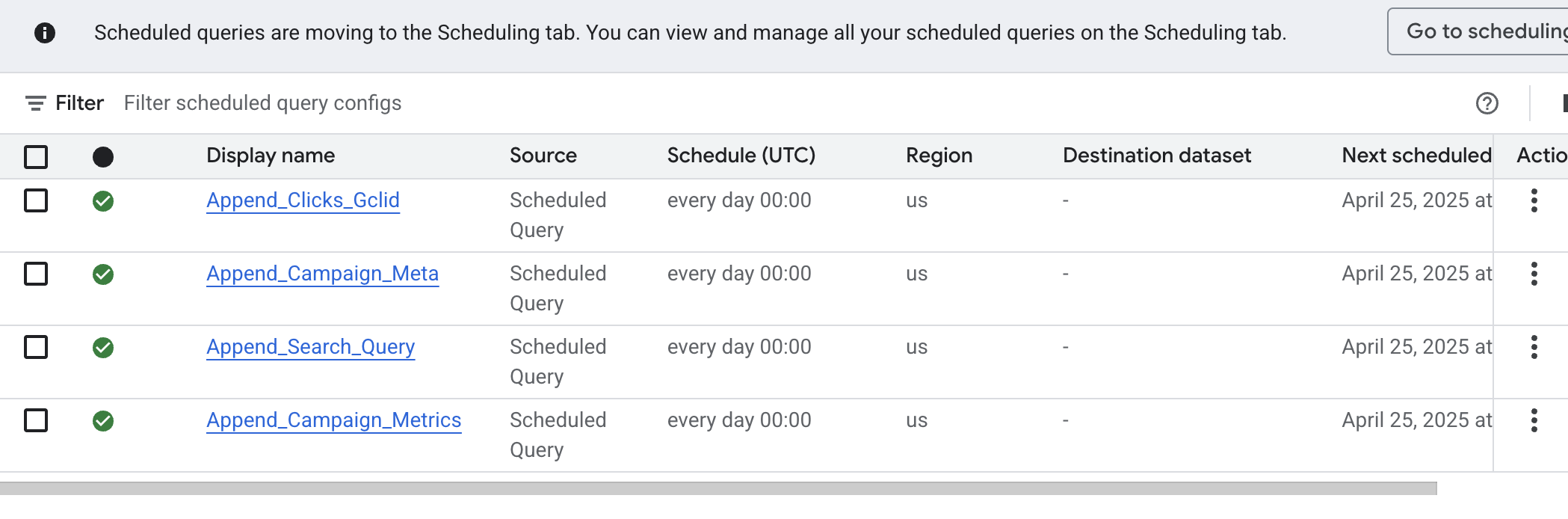

Scheduling the Queries to run each day

Bringing Data into BigQuery-Datawarehouse

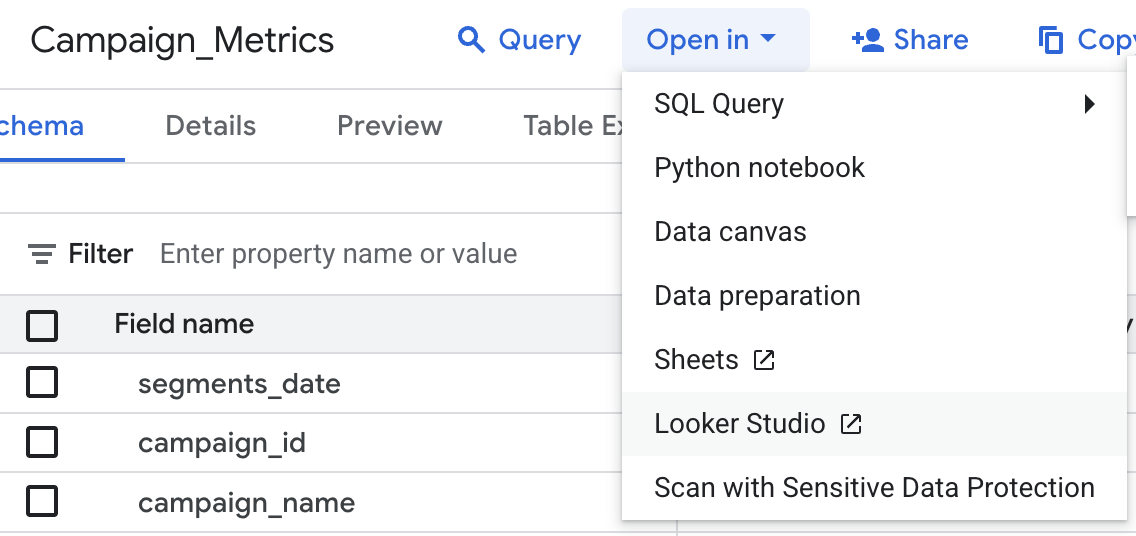

Step 4 - Bringing the cleaned and transformed data to Looker Studio.

Bringing Data into BigQuery-Datawarehouse

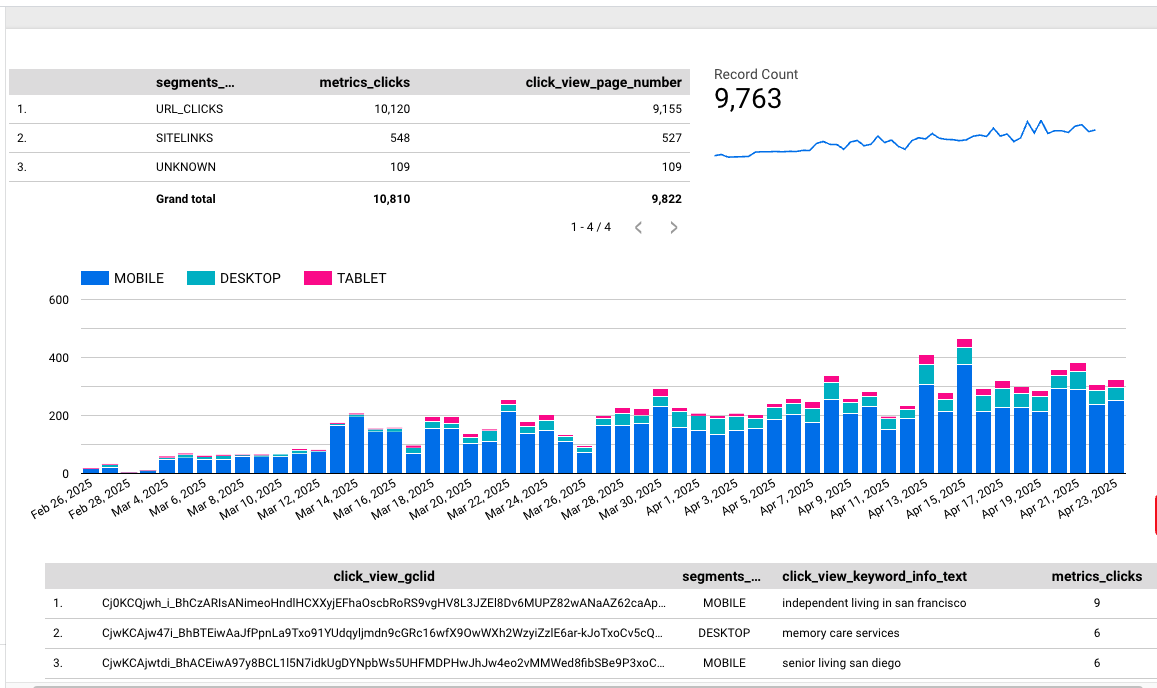

Step 5 - Creating the dashboard and exposing GCLIDs (Google Click Ids) for the client to connect to their leads information (CRM)

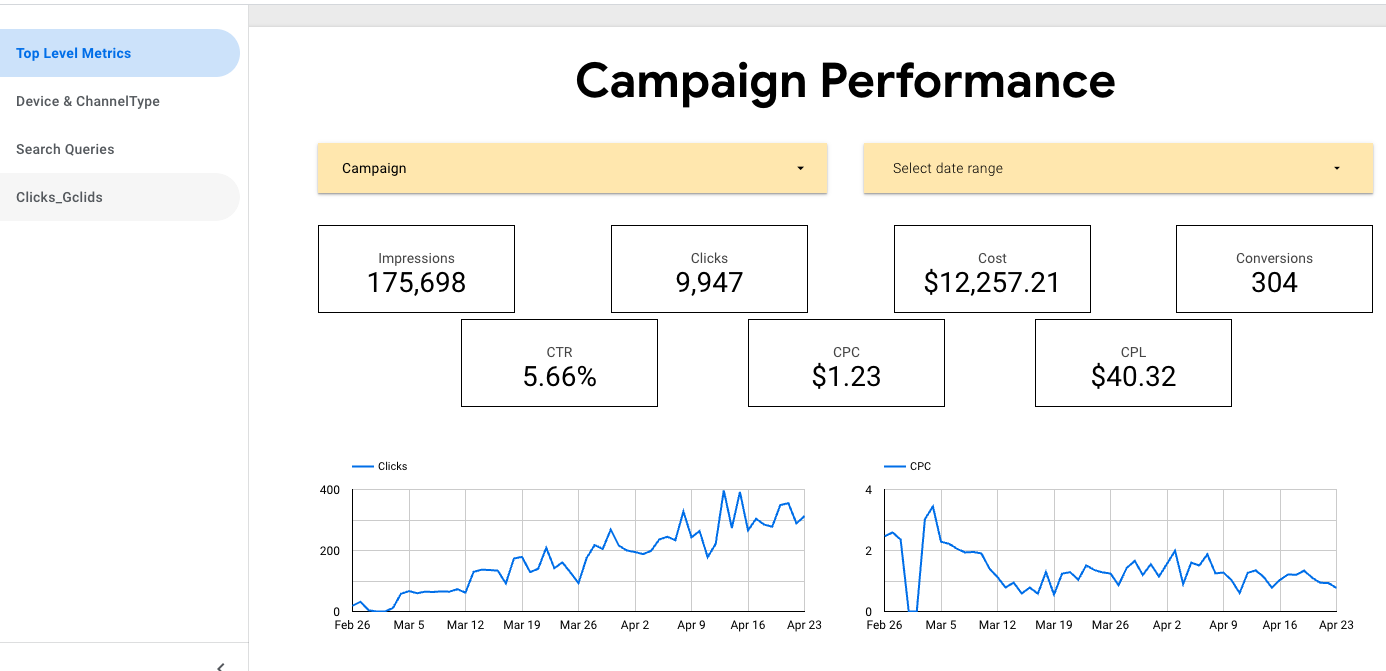

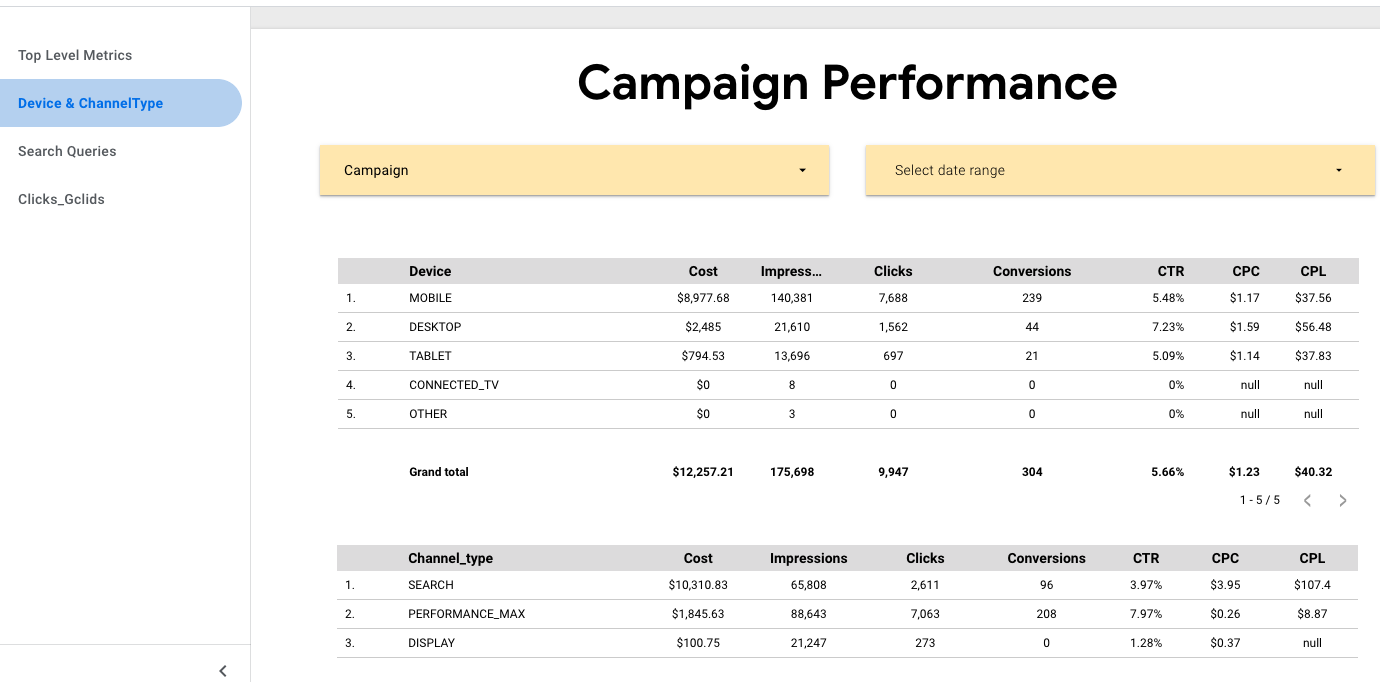

**Sample Dashboard images - **

dashboardsample1

dashboardsample2

dashboardsample3

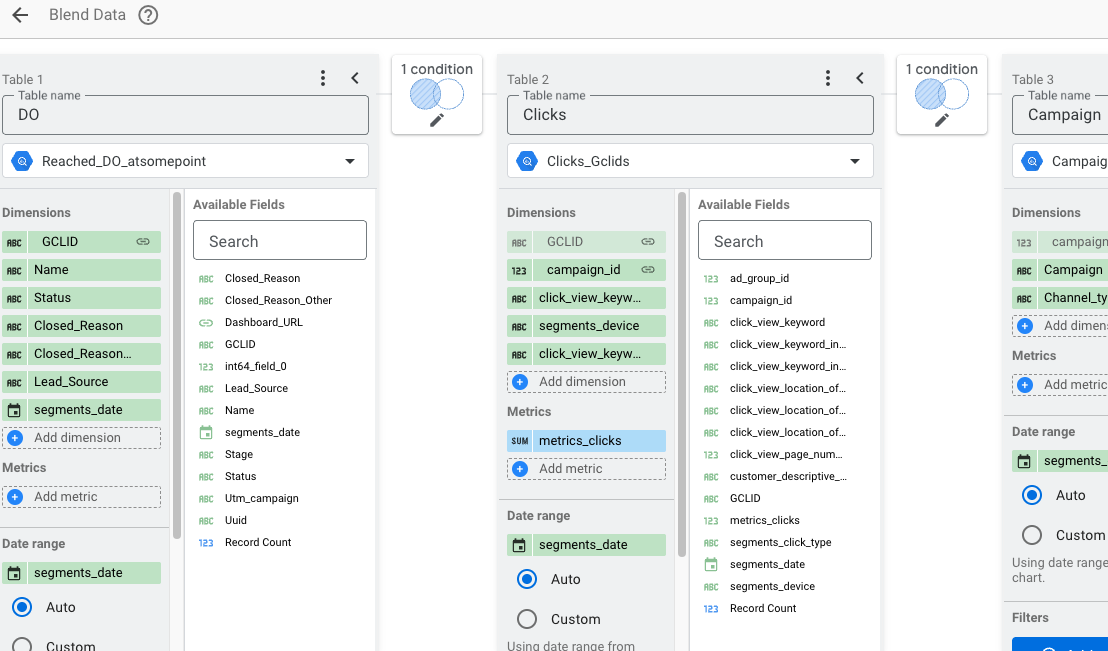

Step 6 - Joining tables - CRM & Google Ads, to map each lead to campaign, keywords, and locations.

To understand the impact of keywords, campaigns, devices, and locations on leads’ quality and identify any trends.

TableJoins
