Digital Ads Data Pipeline & Dashboard
Saved ~40 hrs/month and eliminated manual reporting for a US senior living client — automated Google & Meta Ads data pipeline into BigQuery with a live Looker Studio dashboard.
Solution Architecture
Business Background
As the Account/Data Manager for a digital advertising project with a senior living marketplace in the U.S., I was tasked with building a dashboard to monitor campaign performance — both for internal use and for client reporting.
The client’s data team provided a Looker dashboard that tracked key post-lead metrics. Meanwhile, my team was responsible for guiding the client in setting up a Google Ads & Meta Ads dashboard focused on pre-lead performance indicators such as spend, CTR, CPC, and CPL — broken down by device type, ad type, gender, and age group.
The objective was not just to track pre-lead trends, but also to establish a clear connection between ad spend, individual keywords & clicks, and lead generation & quality.
~40 hrs
saved per month by eliminating manual reporting
Real-time
live dashboard for internal team & client stakeholders
Clear
campaign directions by GEO, device, keyword & channel
Zero
reporting errors — fully automated data pipeline
Challenge
One of the major hurdles was integrating Google & Meta Ads data with the client’s CRM data (lead records). The challenge stemmed from difficulties in locating the correct tables and metrics within the client’s existing data infrastructure, limiting our ability to create a seamless connection between marketing efforts and lead outcomes. Even when identified, the whole process was manual.
Solution
Step 1 — Data Ingestion

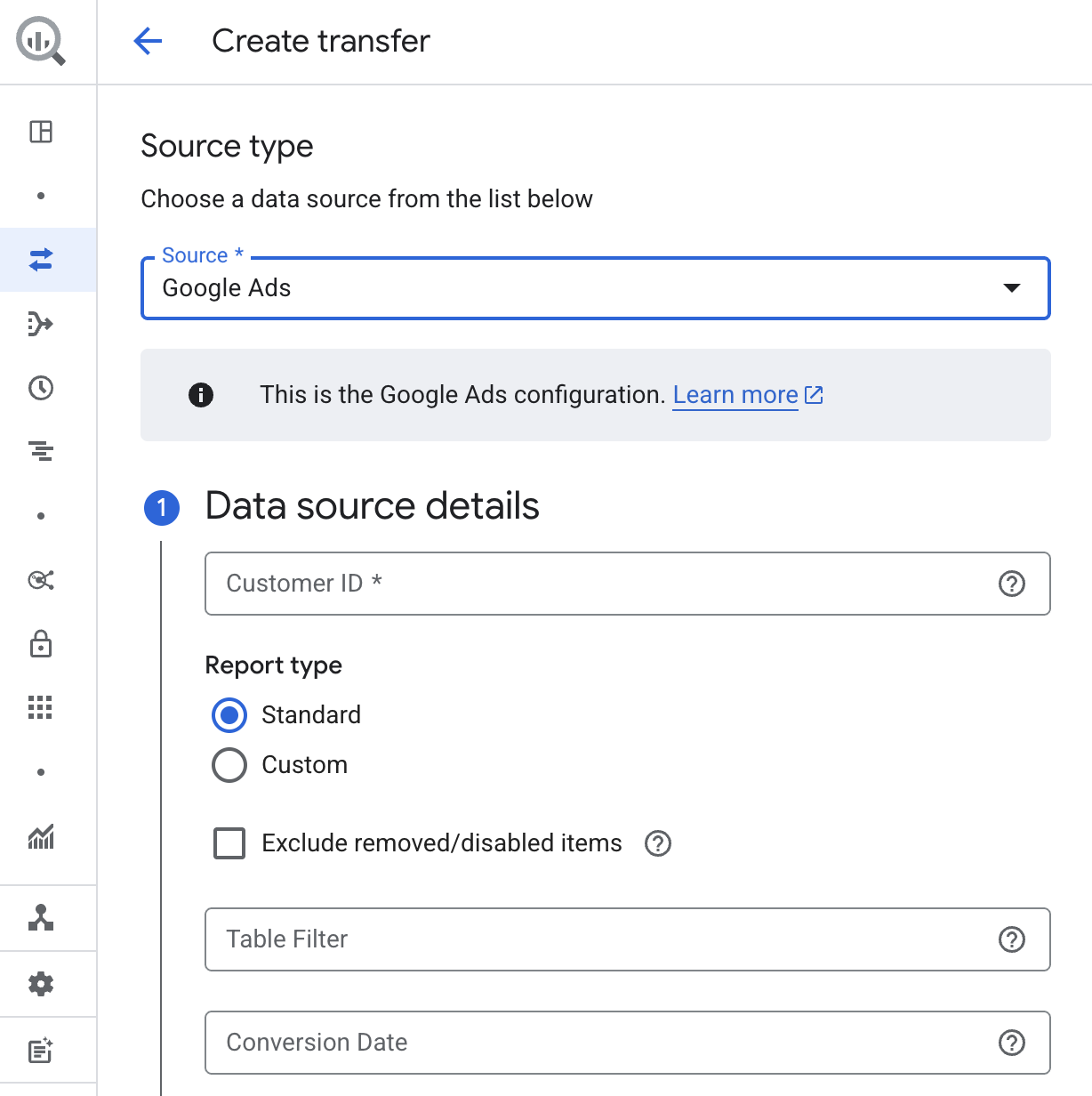

Google Ads
Bringing Google Ads data into the data warehouse — BigQuery.
Meta Ads
Setting up the Meta Ads data transfer requires a few more steps. Here’s the full process:
1️⃣ Create a Facebook App (Meta for Developers)
Go to Meta for Developers → My Apps → Create App. Choose Business type (needed for Ads API access). Provide an App Name, Business Account, and contact email.
2️⃣ Add the Marketing API product
In your App dashboard → Add Product → select Marketing API. This enables ad account and campaign data access.
3️⃣ Get the required permissions
Request the following in App Review → Permissions and Features:
-
ads_read— read campaign & ad performance data -
ads_management— needed for BQ integration business_management
4️⃣ Create a System User & Access Token (via Business Manager)
Go to Business Settings → System Users → Add new system user (Admin role). Assign ad accounts to this user. Generate a long-lived access token with ads_read + ads_management.

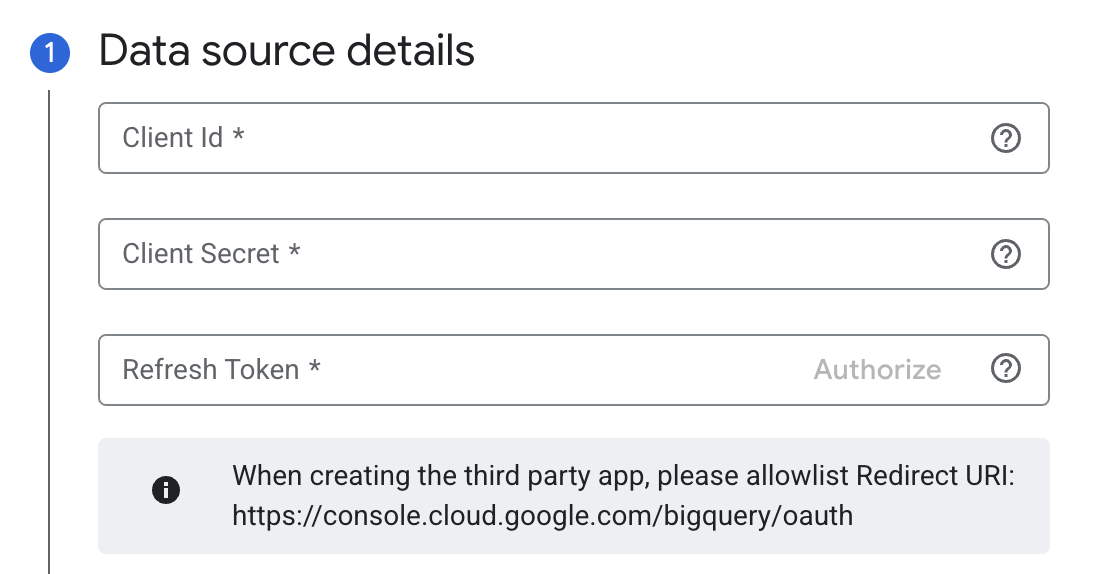

5️⃣ Set up BigQuery Data Transfer Service
Keep your token, App ID (client ID), and App Secret handy. In Google Cloud → BigQuery → Data Transfers → Create Transfer. Choose Facebook Ads as the source, authorize with the refresh token, and add client ID & secret.
Select ad account(s) and schedule daily/hourly imports.
Step 2 — Data Cleaning & Transformation
Creating the metadata required to combine metrics from different tables for an integrated view.
Step 2.1 — Campaign metadata
SELECT
DISTINCT(campaign_id),
campaign_name,
campaign_advertising_channel_type,
campaign_advertising_channel_sub_type,
campaign_start_date,
campaign_serving_status
FROM
`aroscop-456222.********_Adwords.ads_Campaign_9925610920`
WHERE
campaign_start_date > '2025-02-25'
Step 2.2 — Campaign metrics & dimensions
SELECT
segments_date,
Campaign.campaign_id,
Meta.campaign_name,
Meta.campaign_advertising_channel_type,
Campaign.metrics_impressions,
Campaign.metrics_clicks,
Campaign.metrics_conversions,
Campaign.segments_device,
ROUND(Campaign.metrics_cost_micros / 1000000, 2) AS cost
FROM
`aroscop-456222.********_Adwords.ads_CampaignBasicStats_9925610920` AS Campaign
LEFT JOIN
`Cleaned_Data_Metadata_********.Campaign_Meta` AS Meta
USING (campaign_id)
ORDER BY segments_date
Step 2.3 — Click IDs & related metrics
SELECT
click_view_gclid,
Clicks.campaign_id,
ad_group_id,
metrics_clicks,
click_view_keyword,
click_view_keyword_info_match_type,
click_view_keyword_info_text,
click_view_location_of_presence_city,
click_view_location_of_presence_metro,
segments_click_type,
segments_device,
segments_date
FROM
`********_Adwords.ads_ClickStats_9925610920` AS Clicks
LEFT OUTER JOIN
`Cleaned_Data_Metadata_********.Campaign_Meta`
USING (campaign_id)
ORDER BY segments_date
Step 2.4 — Keyword level information
SELECT
ad_group_id,
campaign_id,
Meta.campaign_name,
ad_group_criterion_keyword_match_type,
ad_group_criterion_keyword_text,
ad_group_criterion_negative,
ad_group_criterion_position_estimates_first_page_cpc_micros,
ad_group_criterion_quality_info_post_click_quality_score
FROM
`aroscop-456222.********_Adwords.p_ads_Keyword_9925610920` AS Keywords
LEFT JOIN
`Cleaned_Data_Metadata_********.Campaign_Meta` AS Meta
USING (campaign_id)
WHERE Meta.campaign_start_date >= '2025-02-25'
Step 2.5 — Search queries (actioned terms only)
SELECT
sqt.segments_date,
sqt.campaign_id,
cmp.campaign_name,
sqt.metrics_impressions,
sqt.metrics_clicks,
sqt.metrics_conversions,
sqt.metrics_cost_micros / 1000000 AS cost,
sqt.segments_device,
sqt.search_term_view_status,
sqt.search_term_view_search_term
FROM
`********_Adwords.ads_SearchQueryStats_9925610920` AS sqt
LEFT JOIN
`Cleaned_Data_Metadata_********.Campaign_Meta` AS cmp
USING (campaign_id)
WHERE
cmp.campaign_start_date > '2025-02-25'
AND sqt.search_term_view_status = 'NONE'
Step 3 — Pipeline Orchestration
Automating daily refreshes and incremental appends to all tables.
Append new campaign metadata
INSERT INTO `Cleaned_Data_Metadata_********.Campaign_Meta`
SELECT
campaign_id,
campaign_name,
campaign_advertising_channel_type,
campaign_advertising_channel_sub_type,
campaign_start_date,
campaign_serving_status
FROM `********_Adwords.p_ads_Campaign_9925610920` AS Campaign
WHERE
NOT EXISTS (
SELECT campaign_id
FROM `aroscop-456222.Cleaned_Data_Metadata_********.Campaign_Meta`
WHERE campaign_id = Campaign.campaign_id
)
AND Campaign.campaign_start_date > '2025-02-25'
Append campaign metrics (incremental)
INSERT INTO `Cleaned_Data_Metadata_********.Campaign_Metrics`
SELECT
segments_date,
Campaign.campaign_id,
Meta.campaign_name,
Meta.campaign_advertising_channel_type,
Campaign.metrics_impressions,
Campaign.metrics_clicks,
Campaign.metrics_conversions,
Campaign.segments_device,
ROUND(Campaign.metrics_cost_micros / 1000000, 2) AS cost
FROM `aroscop-456222.********_Adwords.ads_CampaignBasicStats_9925610920` AS Campaign
LEFT JOIN `Cleaned_Data_Metadata_********.Campaign_Meta` AS Meta
USING (campaign_id)
WHERE Campaign.segments_date > (
SELECT MAX(segments_date) FROM `Cleaned_Data_Metadata_********.Campaign_Metrics`
)
ORDER BY segments_date
Append click IDs (deduped)
INSERT INTO `Cleaned_Data_Metadata_********.Clicks_Gclids`
SELECT
click_view_gclid,
Clicks.campaign_id,
ad_group_id,
metrics_clicks,
click_view_keyword,
click_view_location_of_presence_city,
click_view_location_of_presence_metro,
segments_device,
segments_date
FROM `********_Adwords.ads_ClickStats_9925610920` AS Clicks
LEFT OUTER JOIN `Cleaned_Data_Metadata_********.Campaign_Meta`
USING (campaign_id)
WHERE
Clicks.segments_date > (
SELECT MAX(segments_date) FROM `Cleaned_Data_Metadata_********.Clicks_Gclids`
)
AND NOT EXISTS (
SELECT * FROM `Cleaned_Data_Metadata_********.Clicks_Gclids` AS Old
WHERE Old.click_view_gclid = Clicks.click_view_gclid
)
ORDER BY Clicks.segments_date
Append search queries (incremental)
INSERT INTO `Cleaned_Data_Metadata_********.Search_Queries`
SELECT
sqt.segments_date,
sqt.campaign_id,
cmp.campaign_name,
sqt.metrics_impressions,
sqt.metrics_clicks,
sqt.metrics_conversions,
sqt.metrics_cost_micros / 1000000 AS cost,
sqt.segments_device,
sqt.search_term_view_status,
sqt.search_term_view_search_term
FROM `********_Adwords.ads_SearchQueryStats_9925610920` AS sqt
LEFT JOIN `Cleaned_Data_Metadata_********.Campaign_Meta` AS cmp
USING (campaign_id)
WHERE
cmp.campaign_start_date > '2025-02-25'
AND sqt.search_term_view_status = 'NONE'
AND sqt.segments_date > (
SELECT MAX(segments_date) FROM `Cleaned_Data_Metadata_********.Search_Queries`
)

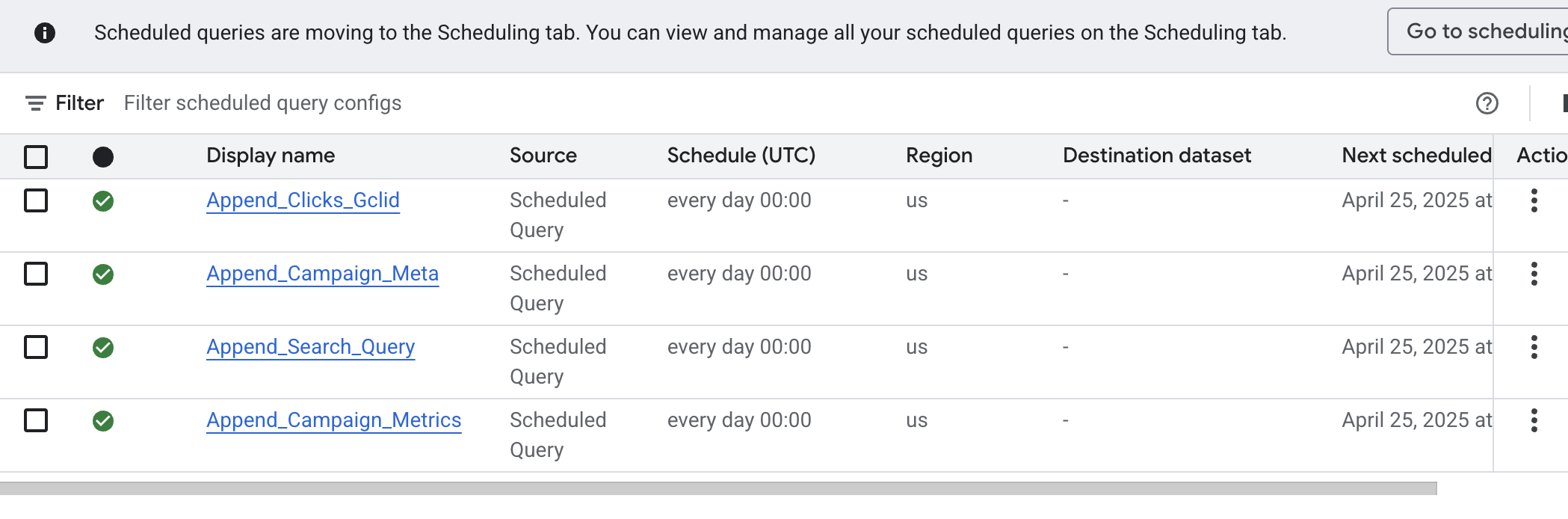

Scheduling all queries to run daily

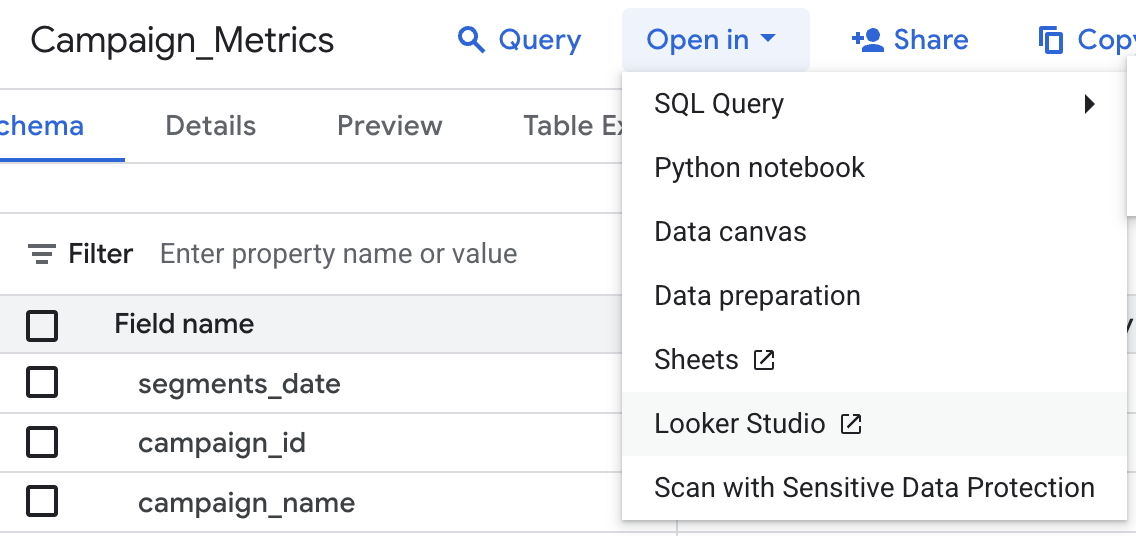

Step 4 — Connecting to Looker Studio

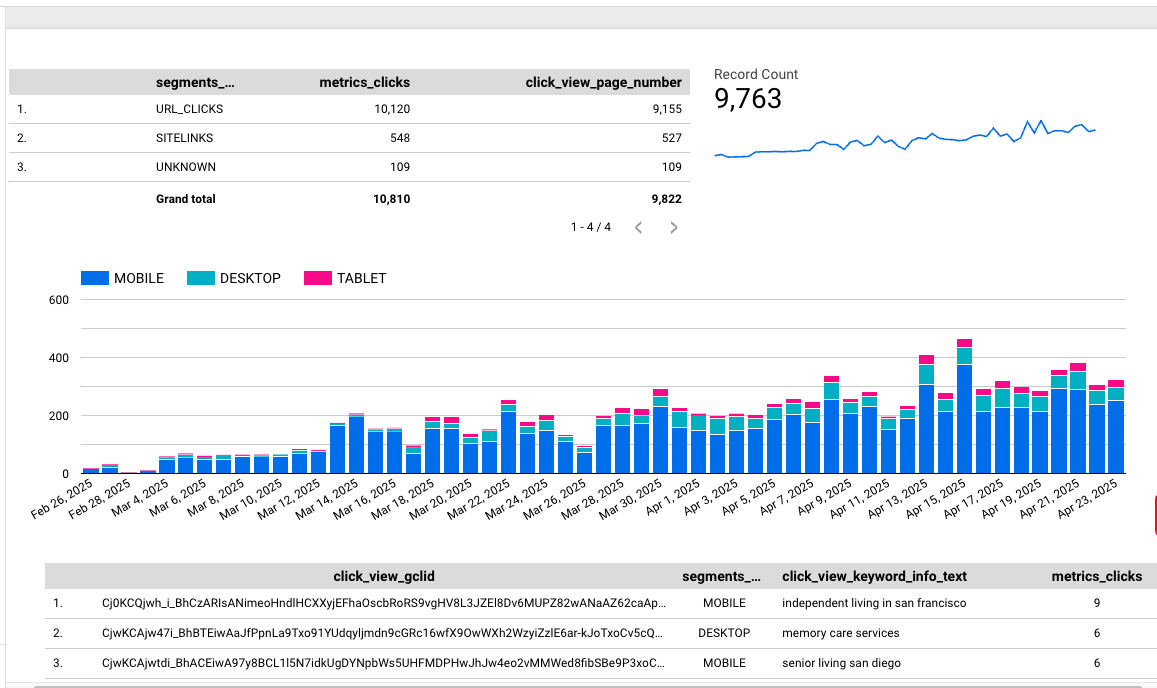

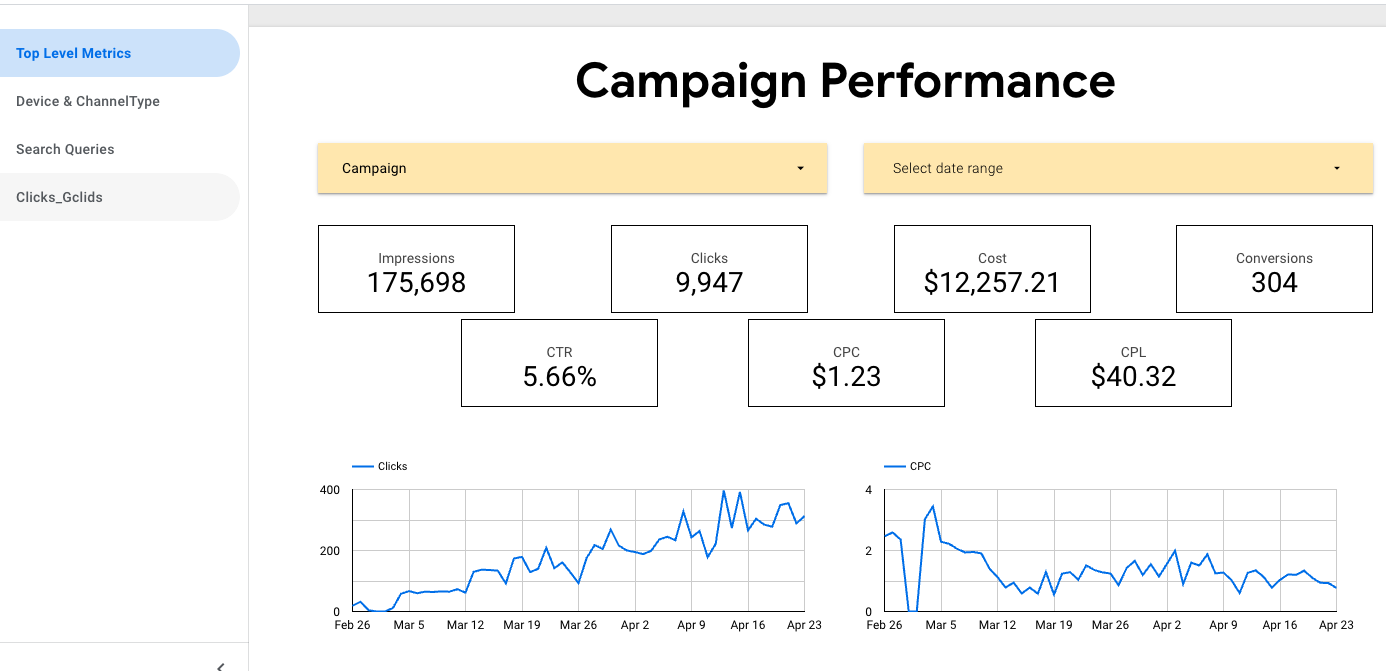

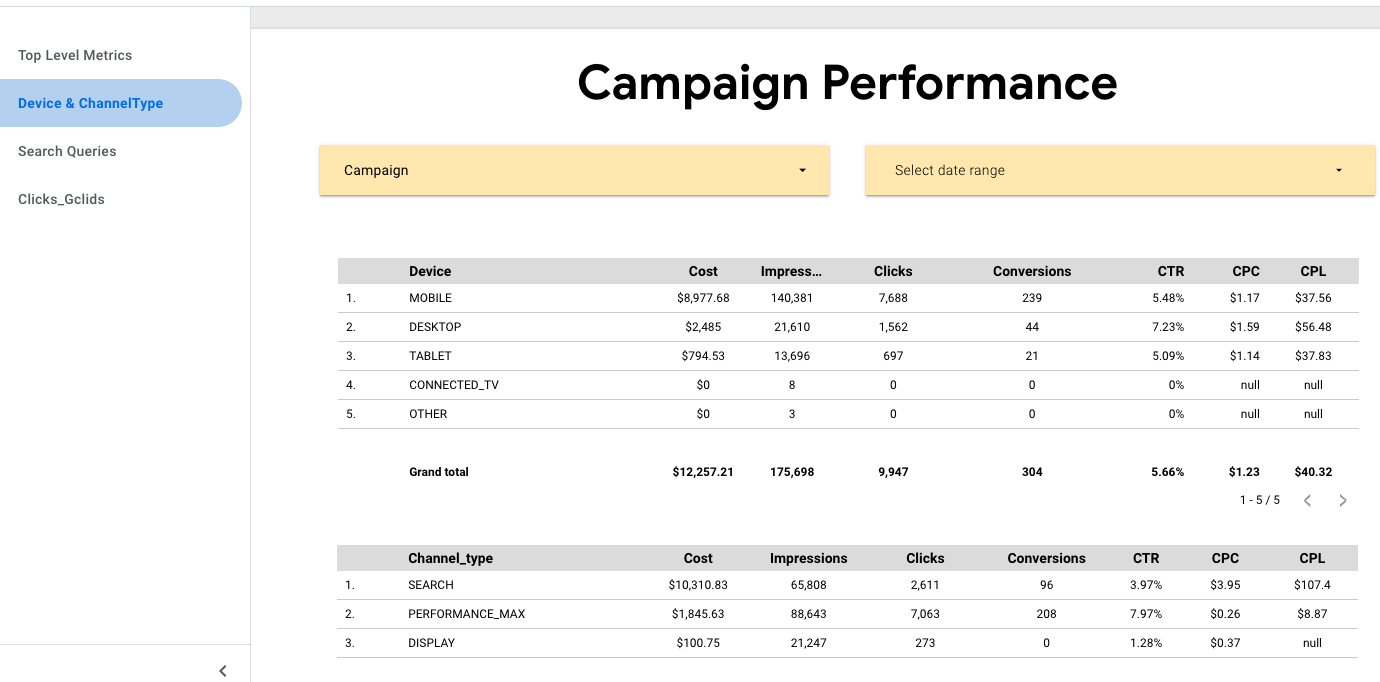

Step 5 — Dashboard & GCLID Exposure
Built a live Looker Studio dashboard and exposed Google Click IDs (GCLIDs) so the client could join ad click data to their CRM lead records.

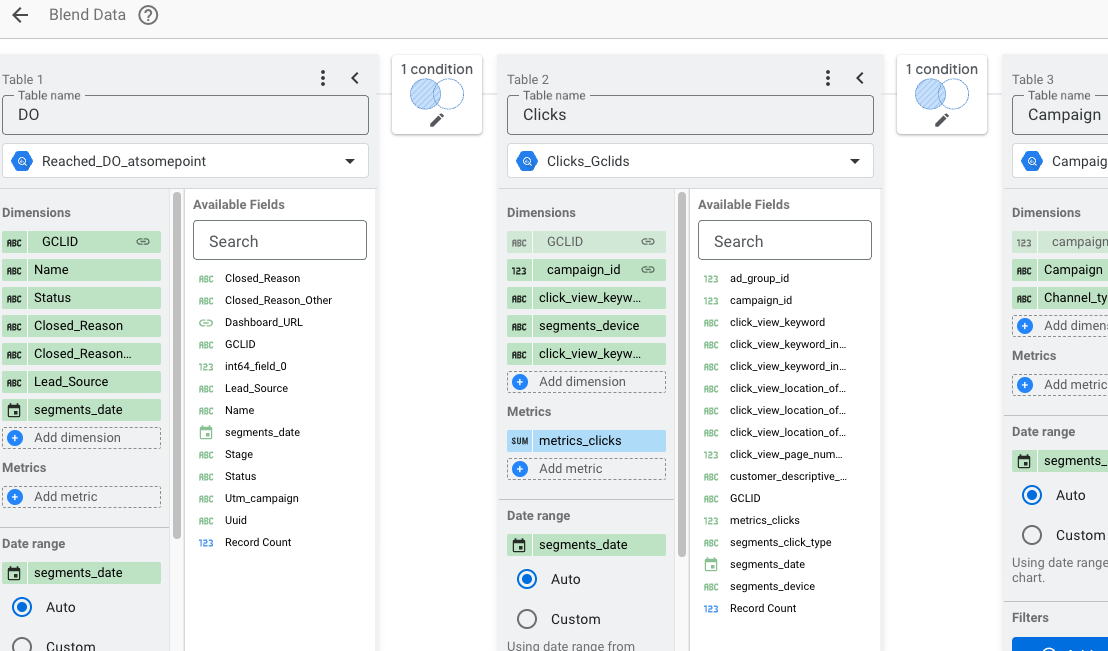

Step 6 — Joining CRM & Google Ads Data
Joined CRM lead records to Google Ads click data via GCLID to map each lead back to the campaign, keyword, device, and location that drove it — enabling insight into lead quality, not just lead volume.
