Solution Architecture

Data Solution Pipeline Architecture

Business background

I managed digital marketing for a major US telecom’s B2B division. Campaigns included Programmatic Display and Google Ads (Search, Display, Video). The core KPIs were Cost per Lead, SQLs, and Cost per Opportunity.

Problem

The reporting workflow was fragile and manual:

Multiple data sources
New Excel/Google Sheet created for every report
Duplicate data and inconsistent logic across versions
Missing updates to older leads and opportunities

Bottom line: there was no single source of truth, so performance was often under-reported.

What was broken

Key issues in the existing reporting system

Leads were not reliably recorded using a stable primary key (Lead ID).
Historical leads were not updated. Example scenarios:
- A lead disqualified later did not get reflected
- An opportunity added later was missed, leading to under-reported wins
Leads from Inbound calls, Chatbot, Calendly often lacked UTM tags.
- The client manually added tags occasionally, but future sheets frequently missed the same tags again.

Result: data was not dynamically updated, and reporting drifted over time.

Impact (Data discrepancies)

Example outcomes

Missing leads
- Leads in CRM sheets (Jan–17 Sep): 3061
- Leads in the most recent sheet (Jan–17 Sep): 2978
Missed opportunities
- ~25% error rate in the existing system

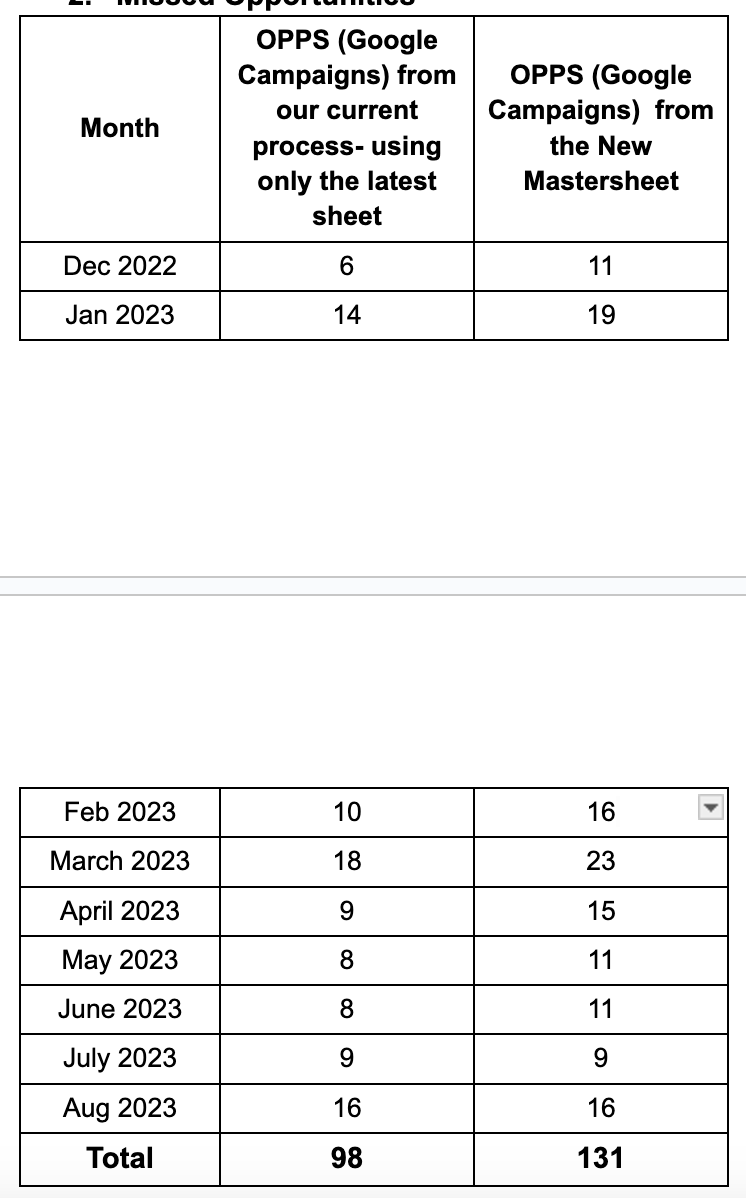

Discrepancies in data (reported vs actuals)

Solution approach

To create an error-proof unified system, we built a continuously updated living source of truth.

Design goals

Automate workflows (remove manual rework)
Maintain data integrity (primary keys + consistent updates)
Always report using the latest, most complete data

Proposed workflow (ETL)

Extract

Ingest CRM CSV files into BigQuery and maintain a master table that updates historical records.

Step 1 — Create the MasterSheet table

CREATE TABLE `.....Sheets.MasterSheet` (
  Lead_ID STRING,
  Created_Date DATE,
  Account_Engagement_Created_Date STRING,
  Entry_Status STRING,
  Lead_Status STRING,
  Company___Account STRING,
  City STRING,
  State_Province STRING,
  Zip_Postal_Code STRING,
  utm_source STRING,
  utm_medium STRING,
  utm_campaign STRING,
  Google_Analytics_Source STRING,
  Google_Analytics_Medium STRING,
  Google_Analytics_Campaign STRING,
  Google_Analytics_Content STRING,
  Google_Analytics_Term STRING,
  Disqualified_Reason STRING,
  Primary_Source STRING,
  Stage STRING,
  Total_Lines INTEGER,
  Handset_Qty INTEGER,
  IoT_Qty INTEGER,
  Connected_Device_Qty INTEGER,
  No__of_Employees INTEGER
);

Step 2 - Populating Master sheet (with the first sheet)

INSERT INTO
  `.....Sheets.MasterSheet`
SELECT
  Lead_ID,
  Created_Date,
  Account_Engagement_Created_Date,
  Entry_Status,
  Lead_Status,
  Company___Account,
  City,
  State_Province,
  Zip_Postal_Code,
  utm_source,
  utm_medium,
  utm_campaign,
  Google_Analytics_Source,
  Google_Analytics_Medium,
  Google_Analytics_Campaign,
  Google_Analytics_Content,
  Google_Analytics_Term,
  Disqualified_Reason,
  Primary_Source,
  Stage,
  Total_Lines,
  Handset_Qty,
  IoT_Qty,
  Connected_Device_Qty,
  No__of_Employees
FROM
  `....Sheets.May_17_2023`

Step 3 - Updating Mastersheet with New CRM data sheet (recurring)

UPDATE
`dataanalytics-2023-394903.USCC_Leads_CRM_Sheets.MasterSheet` AS M
SET
M.Lead_Status = N.Lead_Status,
M.Disqualified_Reason = N.Disqualified_Reason,
M.Stage = N.Stage,
M.Total_Lines = N.Total_Lines,
M.Handset_Qty = N.Handset_Qty,
M.IoT_Qty = N.IoT_Qty,
M.utm_source = IFNULL(M.utm_source,N.utm_source),
M.utm_medium = IFNULL(M.utm_medium,N.utm_medium),
M.utm_campaign = IFNULL(M.utm_campaign,N.utm_campaign),
M.Connected_Device_Qty = N.Connected_Device_Qty
FROM
`dataanalytics-2023-394903.USCC_Leads_CRM_Sheets.Sep_27_2023` AS N
WHERE
M.Lead_ID = left(N.Lead_ID,15)

Step 4 - Inserting (APPENDING) new rows from the new sheet into master sheet (recurring)

INSERT INTO
`.....Sheets.MasterSheet`
SELECT
Left(Lead_ID,15),
Created_Date,
Account_Engagement_Created_Date,
Entry_Status,
Lead_Status,
Company___Account,
City,
State_Province,
Zip_Postal_Code,
utm_source,
utm_medium,
utm_campaign,
Google_Analytics_Source,
Google_Analytics_Medium,
Google_Analytics_Campaign,
Google_Analytics_Content,
Google_Analytics_Term,
Disqualified_Reason,
Primary_Source,
Stage,
Total_Lines,
Handset_Qty,
IoT_Qty,
Connected_Device_Qty,
No__of_Employees
FROM
`.....Sheets.Sep_27_2023` AS N
WHERE NOT EXISTS
(
SELECT
Lead_ID,
Created_Date,
Account_Engagement_Created_Date,
Entry_Status,
Lead_Status,
Company___Account,
City,
State_Province,
Zip_Postal_Code,
utm_source,
utm_medium,
utm_campaign,
Google_Analytics_Source,
Google_Analytics_Medium,
Google_Analytics_Campaign,
Google_Analytics_Content,
Google_Analytics_Term,
Disqualified_Reason,
Primary_Source,
Stage,
Total_Lines,
Handset_Qty,
IoT_Qty,
Connected_Device_Qty,
No__of_Employees
FROM
`dataanalytics-2023-394903.USCC_Leads_CRM_Sheets.MasterSheet`
WHERE
Lead_ID = left(N.Lead_ID,15)
)

Transform

Standardise IDs, enrich missing UTM fields, and remove inconsistencies to make the dataset reporting-ready.

Step 5 - Data Cleaning & Transformation

In some Client sheets Lead_Id (the primary key) is 18 chars long while other sheets have 15 Chars as the length - mapping the first 15 chars in all cases works
Missing utm tag fields where Google tags are present.

Merging Two columns to avoid NULL values in the Google Tags(Source, Medium, Campaign) values

UPDATE
 `dataanalytics-2023-394903.USCC_Leads_CRM_Sheets.MasterSheet`
 SET
 utm_source=coalesce(utm_source,Google_Analytics_Source),
 utm_medium=coalesce(utm_medium,Google_Analytics_Medium),
 utm_campaign=coalesce(utm_campaign,Google_Analytics_Campaign)
 WHERE
 utm_source Like 'google'

Cleaning & Replacing Blank UTM_Campaign with Google_Campaign

​​update
`dataanalytics-2023-394903.USCC_Leads_CRM_Sheets.MasterSheet`
set
utm_campaign = Google_Analytics_Campaign
WHERE
utm_source like 'google'
AND
utm_campaign = ''

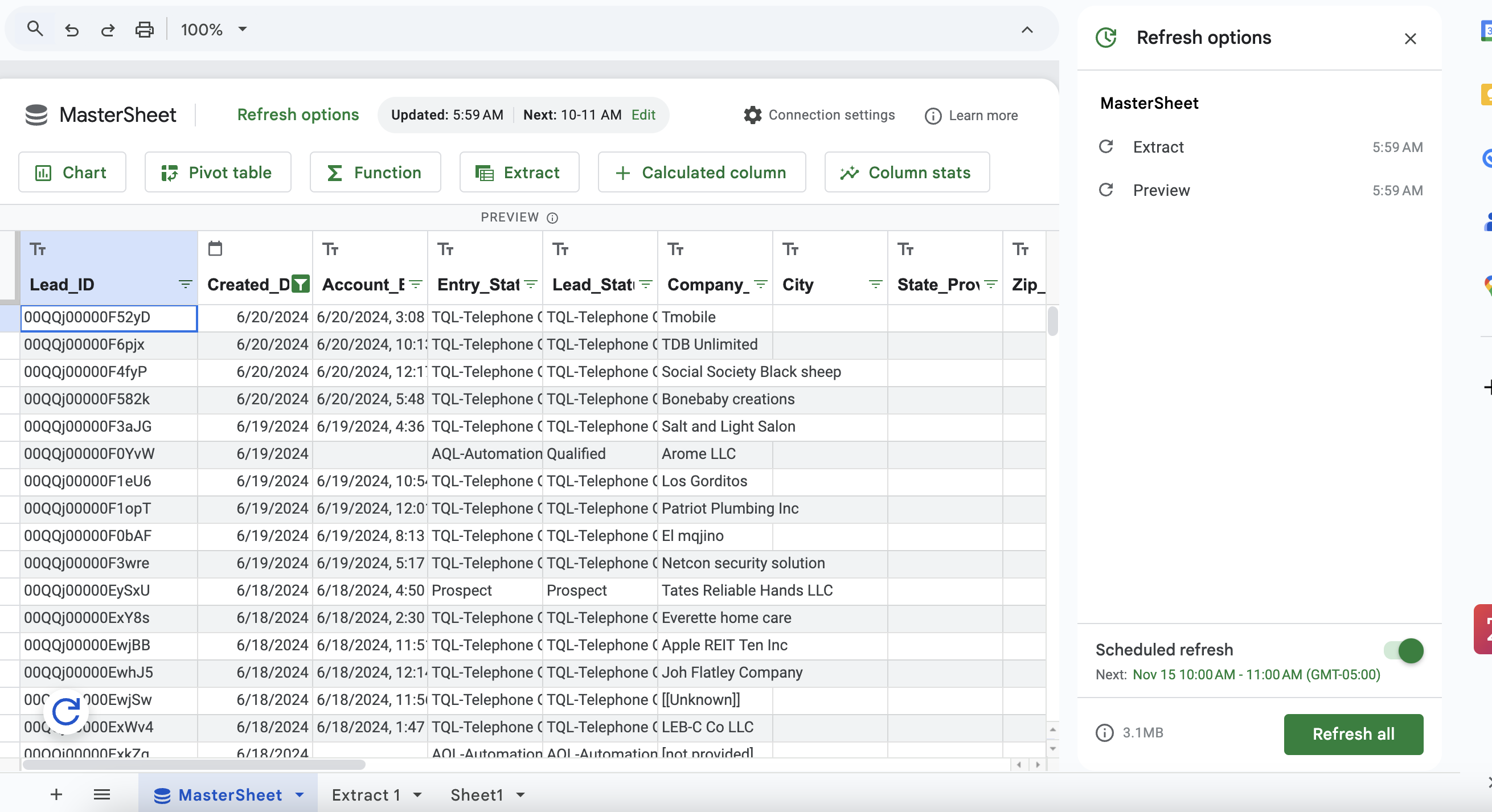

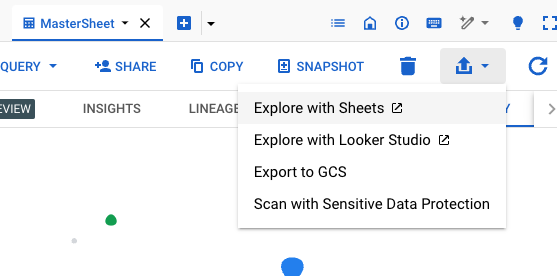

Connecting the CRM data to a dynamic Google Sheet for analysis & reporting

Load

Pull the transformed CRM master data into Google Sheets, bring Google Ads via Coefficient, and build a live dashboard.

Bring transformed CRM data from the intermediary Google Sheet to combine with the Google Ads data.

=importrange("1xad-3kfzmFDzjxLdkrFDIm-fE_kkDYn_2tVJCe6iQFY","Extract 1!A:Y")

Filtering data for leads from specific sources using GSHeet formulas

Query(MasterData_CRM_Leads!$A:$AB,"select count(A) where J contains 'google' AND Not K contains 'organic' AND B >= date'"&TEXT(B3,"yyyy-mm-dd")&"' AND (S = 'Website' OR S contains 'google') AND B <= date'"&text(C3,"yyyy-mm-dd")&"' AND Not L contains 'bi_failover_sciera_23_q3_pmax' Label count(A) 'Formfills'",1)

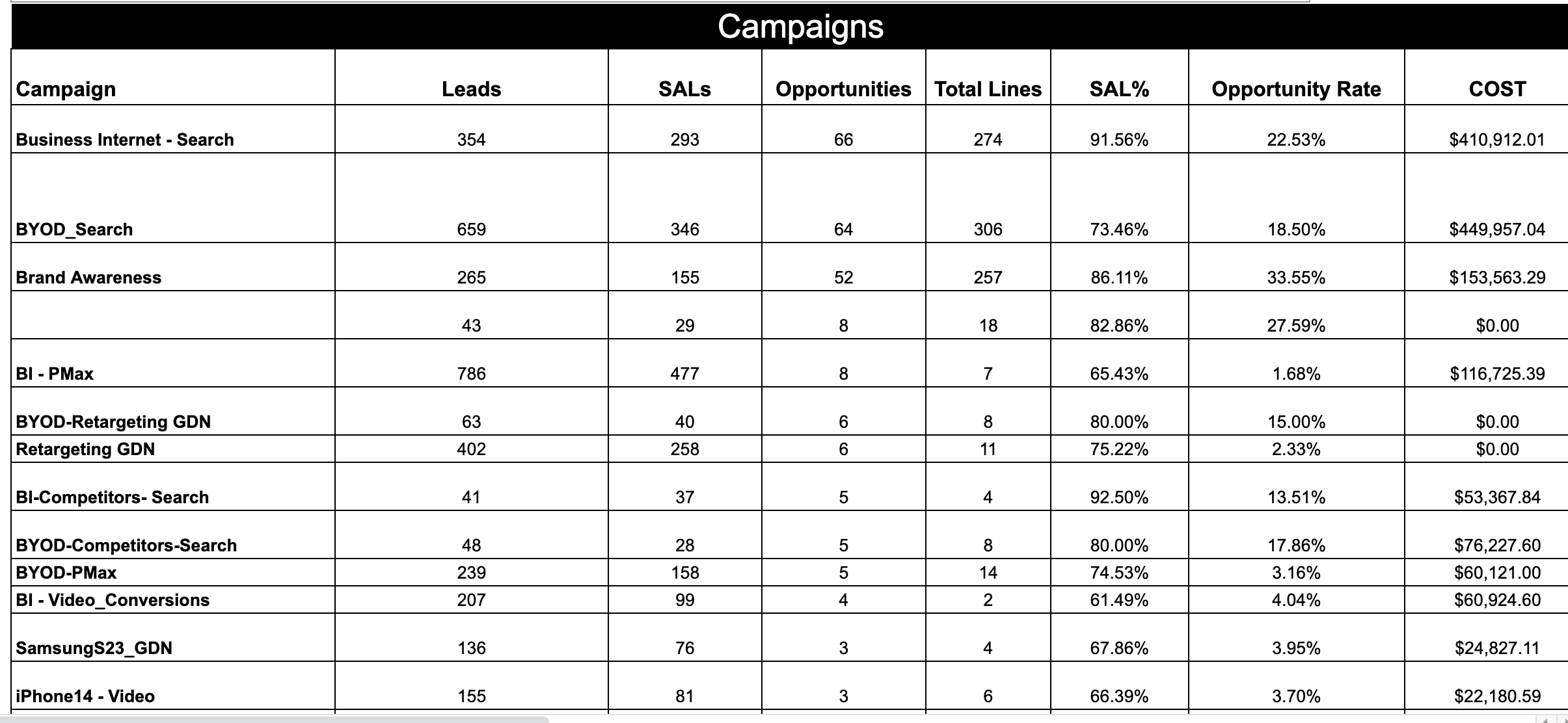

Final result - Bringing the data from both sources to create a real-time & dynamic dashboard

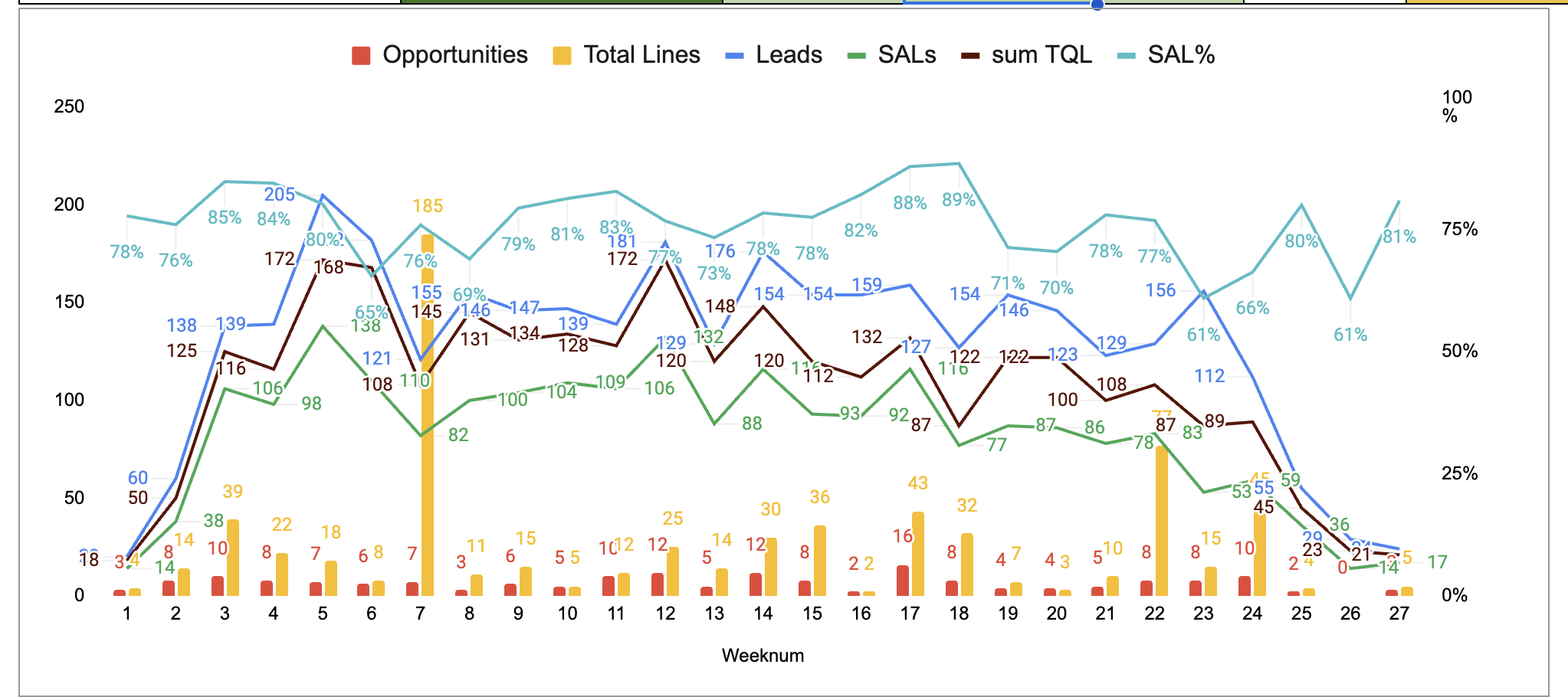

Real-time Dashboard for centralised, error-free and live reporting to internal & external stakeholders
