Marketing Analytics Pipeline
Saved ~50 hrs/month and replaced manual reporting with a real-time Looker Studio dashboard — tracking 20+ campaigns across 20 US cities via a BigQuery + dbt ELT pipeline.
Overview
As the Data Lead and Account Manager for a US-based Senior Living Marketplace, I designed and built a fully automated marketing analytics system from the ground up — covering data ingestion, transformation, and real-time dashboard delivery for both internal and client-side stakeholders.
The client was running 20+ digital advertising campaigns across 20 cities in the US, with spend split across Google Ads and Meta Ads. Data was fragmented, reporting was manual, and the team had no single view to make confident campaign decisions.
My Role
I was the sole data engineer and account lead on this project, responsible for:
- Architecture — designing the full ELT pipeline from scratch
- Data modelling — building and maintaining all dbt models in the DAG
- Dashboard design — structuring KPIs and views for different audience types
- Stakeholder management — translating data insights into campaign decisions for the client team
- Ongoing maintenance — ensuring data freshness, integrity, and pipeline reliability
Results
~50 hrs
saved per month by eliminating manual reporting
Real-time
dashboard replacing static weekly reports
20+ campaigns
tracked across Google & Meta simultaneously
20 cities
of US market coverage with geo-level insights
The Problem
The marketing team faced three compounding challenges:
- No single source of truth — Google Ads, Meta Ads, and CRM lead data lived in separate platforms with no unified view
- Manual reporting overhead — pulling, cleaning, and stitching data together consumed ~50 hours per month
- Delayed decisions — by the time reports were ready, campaign conditions had already changed
What I Built
1. ELT Pipeline — BigQuery + dbt
Designed a multi-source ELT pipeline ingesting raw data from three sources into BigQuery via scheduled transfers:
- Google Ads — campaign metrics, click stats, search query data, geo performance
- Meta Ads — campaign data, ad insights, audience breakdown
- CRM — lead records, engagement milestones, acquisition metadata
Raw tables were transformed using dbt, with a structured DAG covering staging, intermediate, and mart layers.
2. dbt Data Model (DAG)
The dbt transformation layer handled deduplication, schema normalisation, CRM-to-ads joining, and KPI aggregation. Key models included:
Staging models: Bronze (Raw / Source-aligned)
-
Google_Ads_Campaign_Data— cleaned campaign metrics from raw Adwords tables -
Google_Ads_Metadata— campaign metadata and structure -
stg_Facebook_Ads— normalised Meta Ads data -
Gclid_all/Gclid_filtered— click ID resolution for attribution -
Leads— cleaned CRM lead records -
DOs— downstream opportunity records -
UTM_Tags— parsed UTM parameters for attribution
Intermediate models: Silver (Staging / Standardised)
-
AT_Ads_Mapped— ads mapped to active tours -
Discussing_Options_Ads_Mapped— ads linked to discussion-stage leads -
Leads_Ads_Mapped— full CRM-to-ad join -
Meta_Ads_Metrics_incomplete→Meta_Ads_Metrics_Summary -
Adwords_Geo_Analysis— geo-level performance
Mart models: (dashboard-ready / Business-ready)
-
Google_Ads_Metrics— aggregated Google performance -
combined_metrics— cross-platform unified view -
Device_Type_Summary— performance by device -
Dos_by_Campaign_Type— opportunities by campaign -
utm_tags_analysis— UTM-level attribution -
Google_Geo_Analysis_Leads_DOs— geo × lead × opportunity breakdown -
leads_by_campaign_type— lead volume by campaign type
SQL — Key dbt Models
Three representative models that power the dashboard:
combined_metrics — Cross-Channel Daily Spend & Funnel
This mart model joins Google and Meta daily spend with CRM funnel stages (Leads → DOs → Active Tours → Wins) to give a unified cross-channel view for each day.
with
google as (select * from ),
meta as (select * from ),
leads as (select * from ),
dos as (select * from ),
ats as (select * from ),
wins as (select * from where stage = 'Won'),
google_spend as (
select segments_date, sum(cost) as google_cost
from google group by segments_date
),
meta_spend as (
select date, sum(amount_spent_usd) as meta_cost
from meta group by date
),
leads_daily_meta as (
select date, count(*) as meta_leads
from leads where channel = 'Meta' group by date
),
leads_daily_google as (
select date, count(*) as google_leads
from leads where channel = 'Google' group by date
),
dos_daily_meta as (
select date, count(*) as meta_dos
from dos where channel = 'Meta' group by date
),
dos_daily_google as (
select date, count(*) as google_dos
from dos where channel = 'Google' group by date
),
ats_daily_meta as (
select date, count(*) as meta_ats
from ats where channel = 'Meta' group by date
),
ats_daily_google as (
select date, count(*) as google_ats
from ats where channel = 'Google' group by date
),
wins_daily_meta as (
select date, count(*) as meta_wins
from wins where channel = 'Meta' group by date
),
wins_daily_google as (
select date, count(*) as google_wins
from wins where channel = 'Google' group by date
),
final as (
select
g.segments_date as date,
g.google_cost,
m.meta_cost,
coalesce(lm.meta_leads, 0) as meta_leads,
coalesce(lg.google_leads, 0) as google_leads,
coalesce(dm.meta_dos, 0) as meta_dos,
coalesce(dg.google_dos, 0) as google_dos,
coalesce(am.meta_ats, 0) as meta_ats,
coalesce(ag.google_ats, 0) as google_ats,
coalesce(wm.meta_wins, 0) as meta_wins,
coalesce(wg.google_wins, 0) as google_wins
from google_spend g
left join meta_spend m on g.segments_date = m.date
left join leads_daily_meta lm on g.segments_date = lm.date
left join leads_daily_google lg on g.segments_date = lg.date
left join dos_daily_meta dm on g.segments_date = dm.date
left join dos_daily_google dg on g.segments_date = dg.date
left join ats_daily_meta am on g.segments_date = am.date
left join ats_daily_google ag on g.segments_date = ag.date
left join wins_daily_meta wm on g.segments_date = wm.date
left join wins_daily_google wg on g.segments_date = wg.date
order by g.segments_date
)
select * from final
Device_Type_Summary — Google Performance by Device
Breaks down impressions, clicks, spend, and full funnel metrics (Leads → DOs → ATs → Wins) by device type — used to drive device-level bid strategy.
with
dos_mapped as (select * from ),
leads_mapped as (select * from ),
ats_mapped as (select * from ),
google_metrics as (select * from ),
daily_dos as (
select date, device, count(user_id) as dos
from dos_mapped where channel = 'Google'
group by date, device
),
daily_leads as (
select date, device, count(user_id) as leads
from leads_mapped where channel = 'Google'
group by date, device
),
daily_ats as (
select date, device, count(user_id) as ats
from ats_mapped where channel = 'Google'
group by date, device
),
daily_wins as (
select date, device, count(user_id) as wins
from ats_mapped where channel = 'Google' and stage = 'Won'
group by date, device
),
daily_google_metrics as (
select
segments_date,
segments_device,
sum(metrics_impressions) as impressions,
sum(metrics_clicks) as clicks,
sum(metrics_conversions) as conversions,
sum(cost) as spends
from google_metrics
group by segments_date, segments_device
),
combined as (
select
segments_date,
segments_device,
impressions,
clicks,
conversions,
spends,
coalesce(leads, 0) as leads,
coalesce(dos, 0) as dos,
coalesce(ats, 0) as ats,
coalesce(wins, 0) as wins
from daily_google_metrics gm
left join daily_leads dl
on gm.segments_date = dl.date and gm.segments_device = dl.device
left join daily_dos dd
on gm.segments_date = dd.date and gm.segments_device = dd.device
left join daily_ats da
on gm.segments_date = da.date and gm.segments_device = da.device
left join daily_wins dw
on gm.segments_date = dw.date and gm.segments_device = dw.device
order by segments_date desc
)
select * from combined
Google_Geo_Analysis_Leads_DOs — Geo Attribution via GCLID
Resolves each ad click’s geographic origin to a lead or DO by matching click IDs (GCLIDs) from Google Ads back to CRM records — enabling city-level attribution.
with
geo_data as (select * from ),
leads as (select * from ),
dos as (select * from ),
geo_mapped as (
select
segments_date,
click_view_gclid,
campaign_name,
Name as geo_name,
case
when click_view_gclid in (select gclick_id from leads)
then 1 else 0
end as is_lead,
case
when click_view_gclid in (select gclick_id from dos)
then 1 else 0
end as is_DO
from geo_data
order by segments_date desc
)
select * from geo_mapped

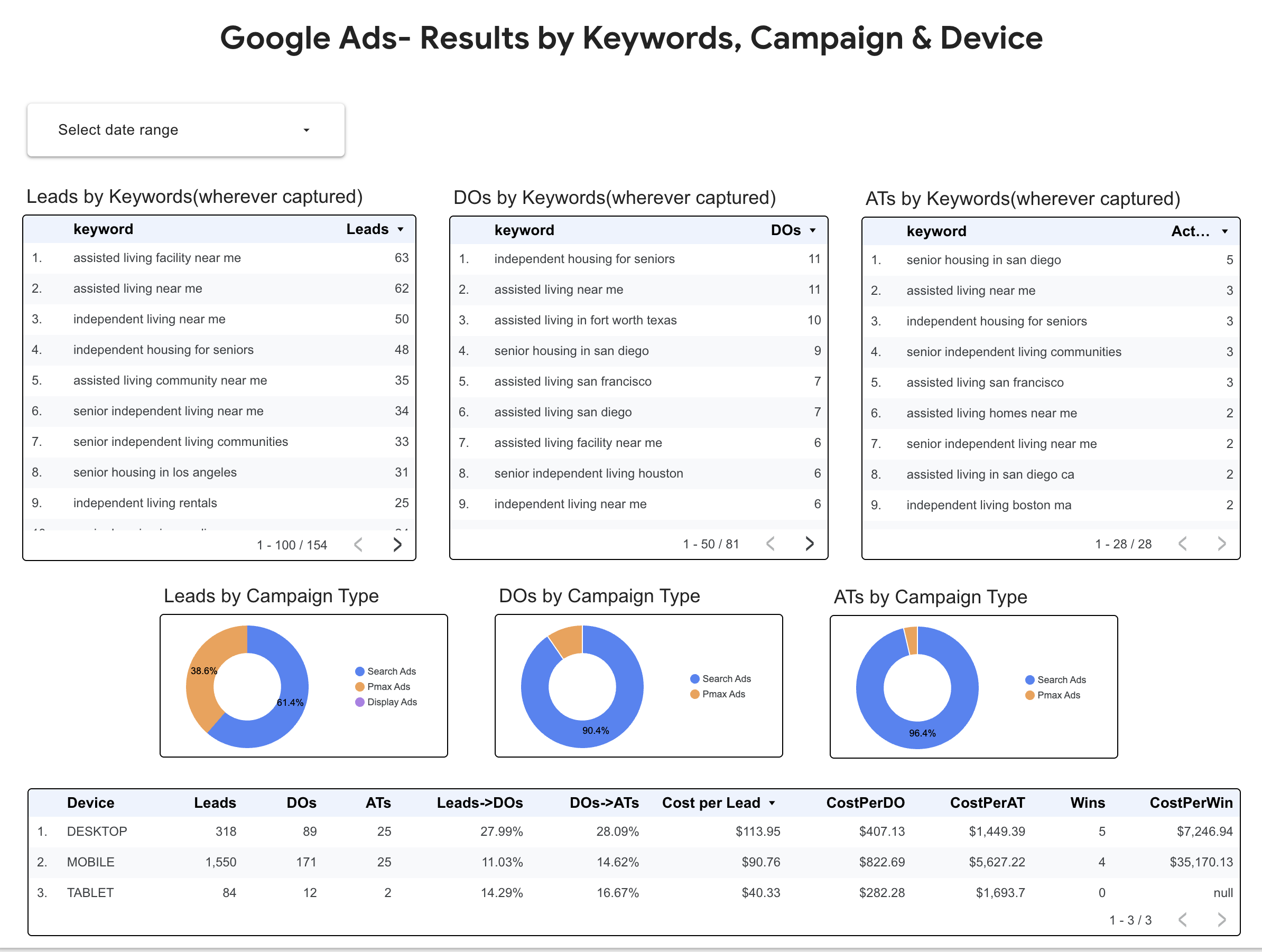

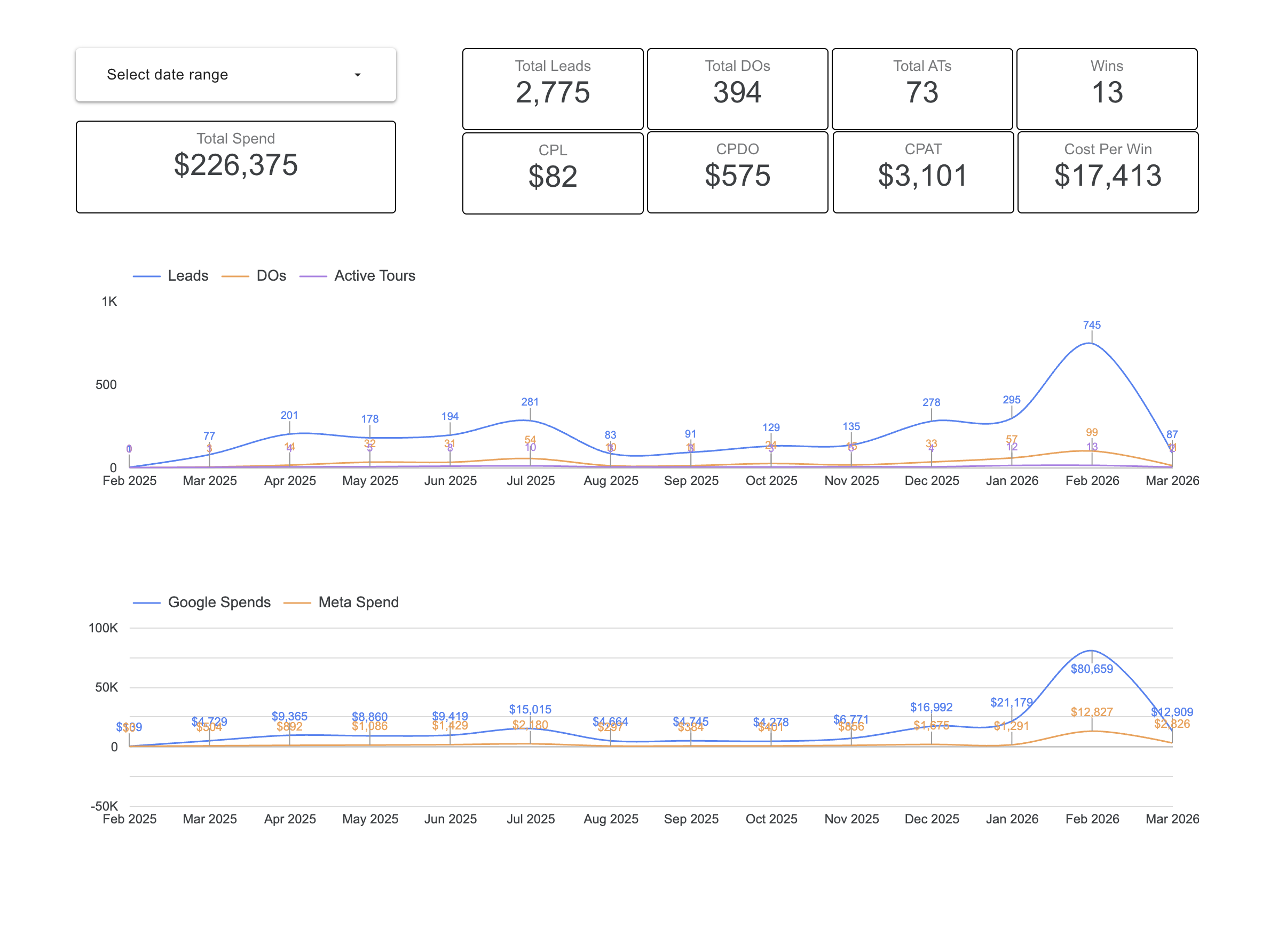

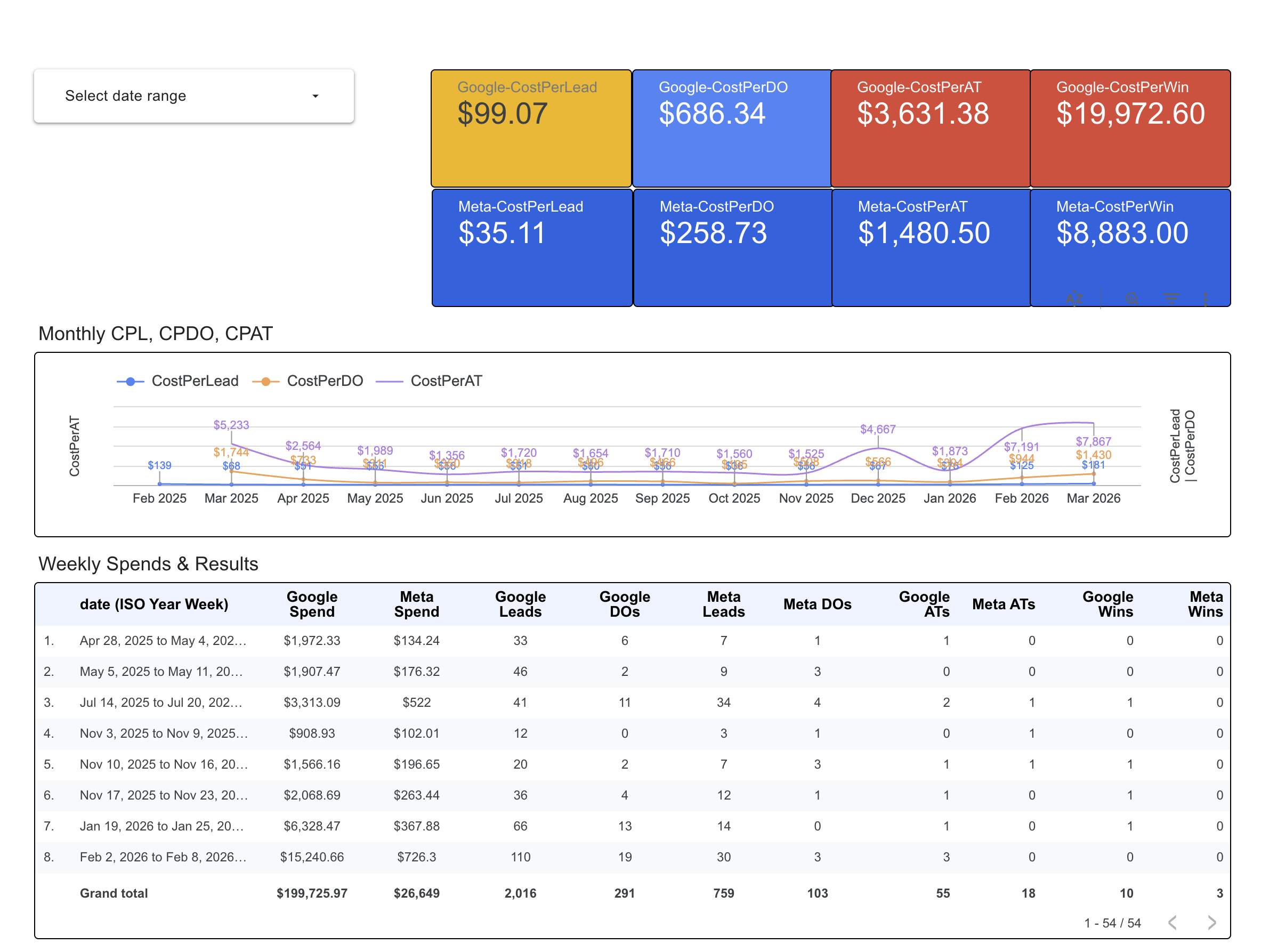

3. Live Dashboard — Looker Studio
Built a real-time Looker Studio dashboard connected directly to BigQuery mart tables, shared with the internal team, client marketing, and client leadership.
The dashboard provided campaign direction across four key dimensions:
| Dimension | Insight Delivered |
|---|---|
| GEO | Performance by city — which markets drive leads vs spend |
| Device Type | Mobile vs desktop split |
| Campaign Type | Performance by Campaign Type - Search Vs PMAX Vs Display |
| Channel | Informing budget allocation |
